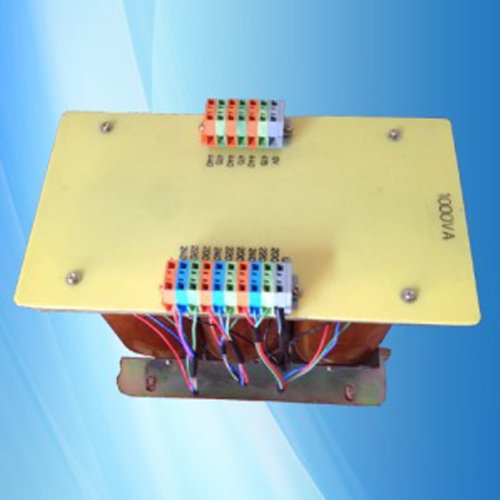

Three Phase Transformers are used to change values of three phase voltage and current and made up of three sets of primary and secondary windings. Our supremely experienced professionals use only the finest quality materials and follow all industry specifications during making of these quality transformers. Our three phase transformers are available from 500 VA TO 200 KVA.
Features
Three sets of windings
Change the values
Long service life
There are only 4 possible transformer combinations
Delta to Delta – use: Industrial applications
Delta to Wye/star – use: most common; commercial and industrial
Wye/star to Delta – use: High voltage transmissions
Wye /star to star / Wye – use: Rare, don’t use causes harmonics and balancing problems
Information required while ordering:
DELTA connection
A delta system is a good short-distance distribution system. It is used for neighborhood and small commercial loads close to the supplying substation. Only one voltage is available between any two wires in a delta system. The delta system can be illustrated by a simple triangle. A wire from each point of the triangle would represent a three-phase, three-wire delta system. The voltage would be the same between any two wires.
WYE/Star Connection
In a wye system the voltage between any two wires will always give the same amount of voltage on a three phase system. However, the voltage between any one of the phase conductors (X1, X2, X3) and the neutral (X0) will be less than the power conductors. For example, if the voltage between the power conductors of any two phases of a three wire system is 208v, then the voltage from any phase conductor to ground will be 120v. This is due to the square root of three phase power. In a wye system, the voltage between any two power conductors will always be 1.732 (which is the square root of 3) times the voltage between the neutral and any one of the power phase conductors. The phase-to-ground voltage can be found by dividing the phase-to-phase voltage by 1.732.
